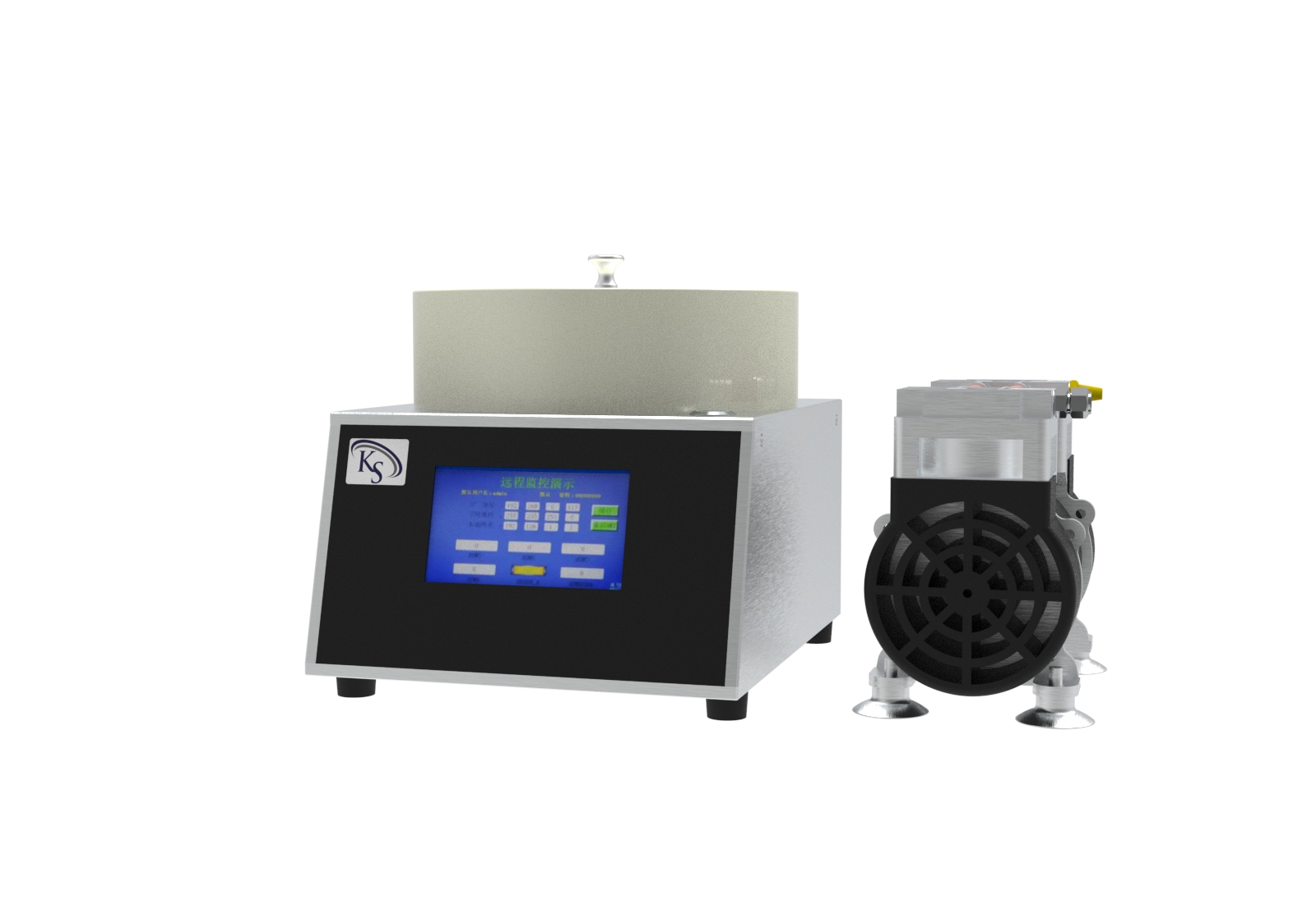

Stainless Steel Cavity Spin Coater
Scope of application:
The coating machine can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in the fields of photoresist spin coating, biological culture medium preparation, sol-gel method to prepare polymer films, etc.
Product Parameters:
| Name | Subentry | Parameters |
| Spin coating instrument | Supply voltage | AC220V,50Hz |
| Speed | 0 to 10000rpm | |
| Acceleration | 100~5000rpm/s | |
| Speed Resolution | 1rpm | |
| Step Time | 3000s | |
| Substrate Size | diameter ≤ 8 inches (200mm) | |
| Cavity Material | stainless steel | |
| Operation mode | 7 inch HD LCD touch screen | |
| Gel dropping method | manual glue drop, can buy precision injection pump | |
| Gluing curve | 5 segments of each curve, which can store 5 curves in total | |
| Air extraction interface | & phi;8mm Quick Screw Interface | |
| Overall size | 290mm × 365mm × 310mm | |
| Overall weight | 12kg | |
| Exhaust system | Vacuum pump | Dry mechanical pump |
| Pumping rate | 1.1L/s | |
| Power supply | AC220V 50/60Hz |
Details: This model of glue machine has been designed to be small, with an aluminum alloy structure as the whole and stainless steel as the cavity, and has a beautiful and sturdy appearance. The instrument uses an advanced precision motor, and the speed can reach 10,000 rpm, which effectively guarantees the uniformity of film formation.
